- Hign-concerned Chemical: None
- Signal To Noise Ratio: >115Db
- Dimensions (WxHxD): 103 x 57 x 43MM
- Body Material: Aluminum
- WIFI: No
- Bluetooth: No
- PCM: No
- DSD (Direct Stream Digital): No
- Channels: 4
- Package: YES
- Model Number: PH04
- Type: Mini Amplifier
- Recommended Headphone Maximum Impedance: 81-100 Ohm
- Built-in Battery: No
- Output Type: LINE OUT (AUDIO OUT)
- Input Type: LINE IN (AUDIO IN)
- Output Voltage: 40mW in 100ohm
- Certification: CE
- Origin: Mainland China
Features:
【Share a Single Stereo Source】4 channel amplifier features 4 independent stereo high-power amplifier sections with separate volume knob for each of up to four outputs,which makes it possible for up to four people monitoring the mix for tracking,live uses and listen to the TV with earbuds while working out.
【For Studio and Stage Applications or more 】Such an ultra-compact and portable design makes it very suitable for the studio or stage where multiple headphones are used at the same time.

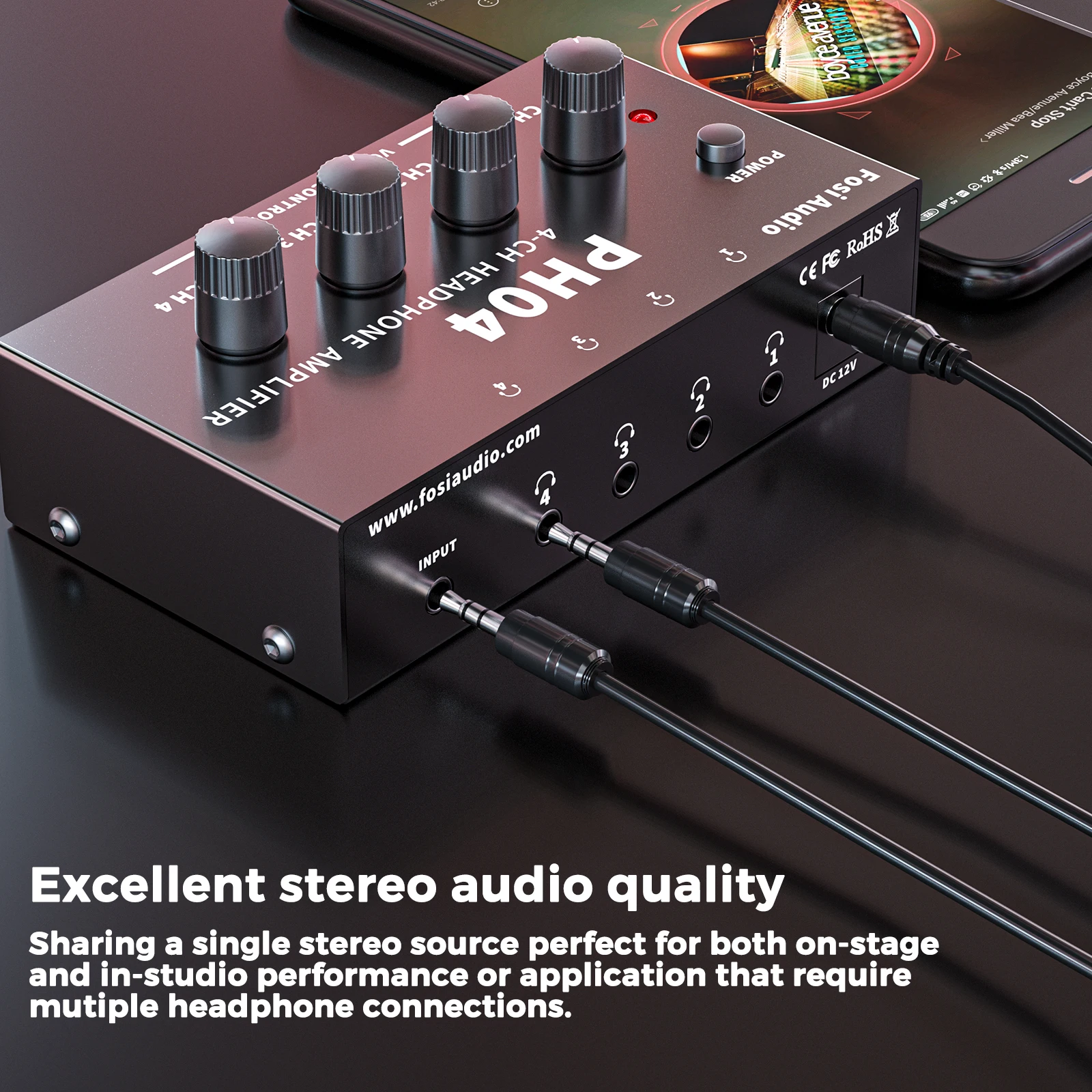

【Fantastic Stereo Quality】It is a mini headphone amplifier with 3.5mm (not 6.35mm)input/output that contributes to smoother connection of output and input,suitable for virtually all types of headphones , creating the highest Stereo audio Quality and eliminating the need for a 6.35 to 3.5mm adapter to connect the headphone power amplifier to the headphone.
【Unique Compact design with switch】It is convenient for you to turn on/off the compact headphone power amplifier with a power switch anytime and anywhere,saving energy when enjoying high stereo audio quality.
【What You Get】】 Ultra low noise headphone amplifier*1 ,12V DC power adapter *1, Use manul*1, 24 Months Warranty for Fosi Audio Headphone amplifier. Please contact with us at any times if you have any problems.
Highlight:
Input Type: 1/8” headphone, stereo
Input Impedance: 100 kΩ
Max. Input level: +15dBu
Output Type: 1/8” headphone, stereo
Output Impedance: 80 Ω
Max. Output level: 40mW in 100 Ω
Power Supply: 12V/1.5A

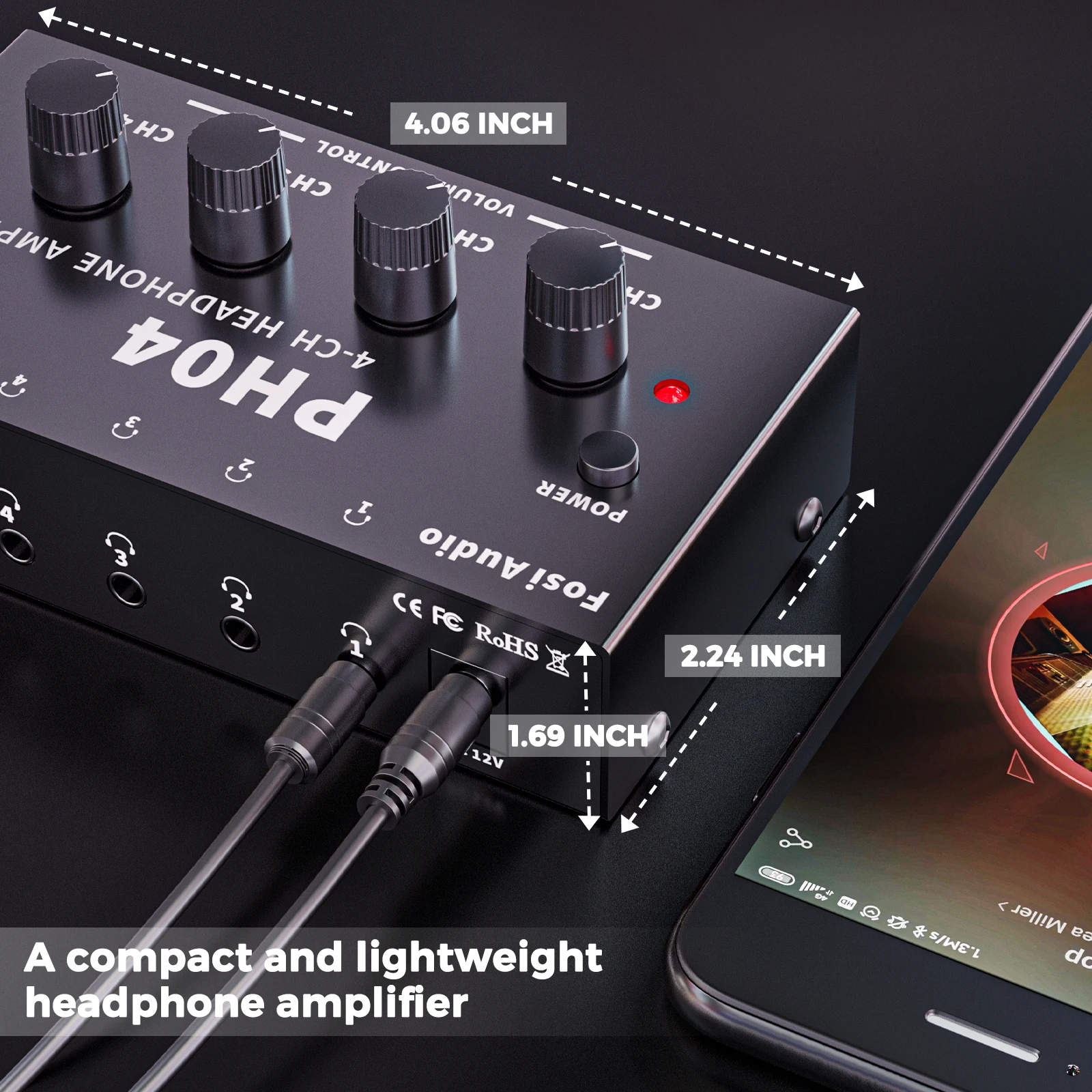

Dimensions (H * W * D): 103 x 57 x 43MM (4.06 x 2.24 x 1.69”) includes knobs
Net weight: 175g
Package Include:
Fosi Audio PH04 *1
12V power adapter *1
User Manual *1
FAQ:
Q: I can’t get 4 inputs to 1 output?
A: The device is designed for 1 input and 4 outputs, and do not support multiple device audio inputs.
Q: I can’t get mic sound input?
A: The PH04 does not have a chip that can parse mic sound and does not support mic input.
Q: Get a pop sound when using the power switch?
A: A short pop when the power is switched, so please remove the audio equipment in advance.
Q: No sound output on one side?
A: Please check all 4 outputs audio, if all outputs are on one side, please make sure the input device/ 1/8” male plug is not a mono input.
If only 1 output interface is faulty, please contact after-sales for replacement.
Q: How do I power this device?
A: Please use the supplied 12V power adapter to power the device, if you are using the car/battery power, please make sure the device power does not exceed 15V.
